Customized Safety Rack Low Voltage Rail Transfer Trolley
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPD |
| Minimum Order Quantity | 1 set/sets |
| Packaging Details | The railway transfer car will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 set/sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Warranty | 18 Months |
|---|---|---|---|
| Load Capacity | 1-70T | Application | Industrial Field, Steel Ladle Transport |
| Port | Qingdao/Tianjin/Shanghai | Power Supply | Cable Reels Power |
| Highlight | Low Voltage Rail Transfer Trolley,Customized Rail Transfer Trolley,Customized Safety Rack Rail Transfer Trolley |
||
Product Description

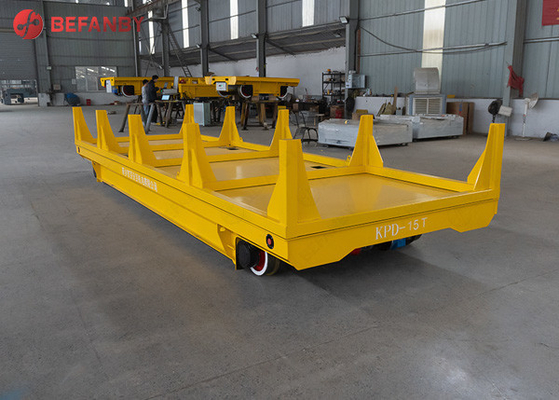

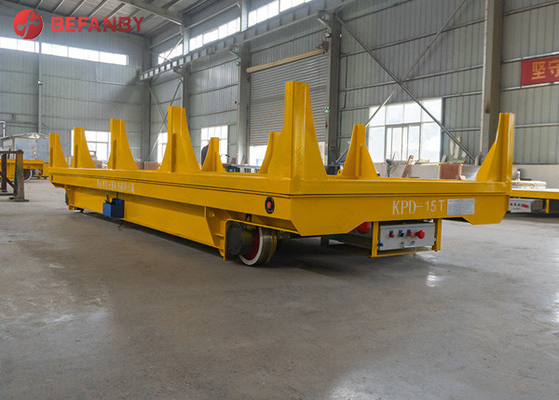

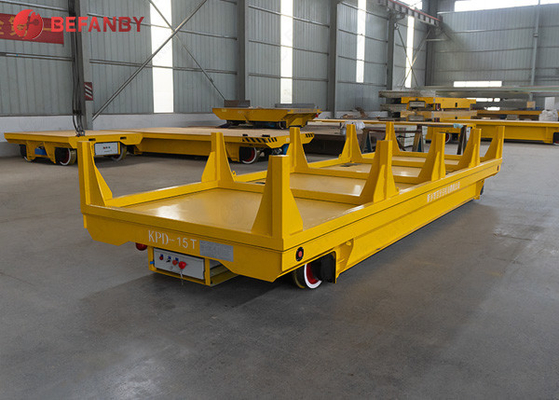

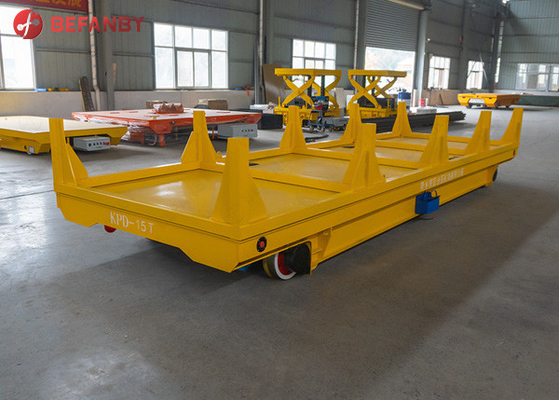

Customized Safety Rack Low Voltage Rail Transfer Trolley
1. Product Introduce
Low-voltage rail electric transfer cart is an electric transfer cart commonly used for factory handling and has been widely used in various handling occasions. It has the advantages of small size, large load capacity, and flexible mobility, and can provide convenient services for industrial production and logistics operations.
In its use, special attention should be paid to safety issues. The wheels and tracks of low-voltage rail electric transfer carts are insulated and can be used in turning situations.
The emergence of low-voltage rail electric transfer carts not only improves work efficiency, but also saves manpower and material costs for enterprises. Its use not only improves work efficiency, but also brings more profits and returns to enterprises. And green environmental protection is a major feature, which will not pollute the environment and is in line with green and sustainable development.
In short, the advantage of low-voltage rail electric transfer carts is that they are flexible and safe. As long as we pay attention to safety issues, strictly follow operating specifications, and actively explore technological upgrades and innovations, we can make better use of this tool to bring greater benefits to industrial production and logistics operations.
|
Please contact us if you's like to learn more details and get the quotation.
BEFANBY have over 20 years' experience in the material handling fields. |
2. Advantage
The advantage of rail transport car is that it is not only safe, but also not afraid of hot, does not hinder cross-transportation, not afraid of smashing, easy to realize remote control and automation, can drive on curved roads and circular roads, and increase the number of step-down transformers properly. The limitation of the running distance of the rail ladle transport car is very convenient for the transportation plane layout of the plant.
3. Technique Parameter
KPD series is a low-voltage power supply without towing cable electric transport car; KPX series is a battery electric motorized rail transport car; KPJ series is a cable reel powered transport car; KPT series is a tow cable powered electric transport car; KPC series is a safe sliding line Powered electric transport car.
| Model | KPD-2t | KPD-5t | KPD-10t | KPD-16t | KPD-20t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
Applications
BEFANBY Client
Our Company
FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
