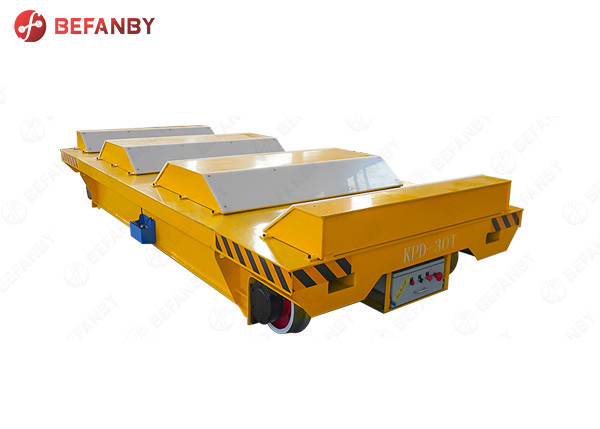

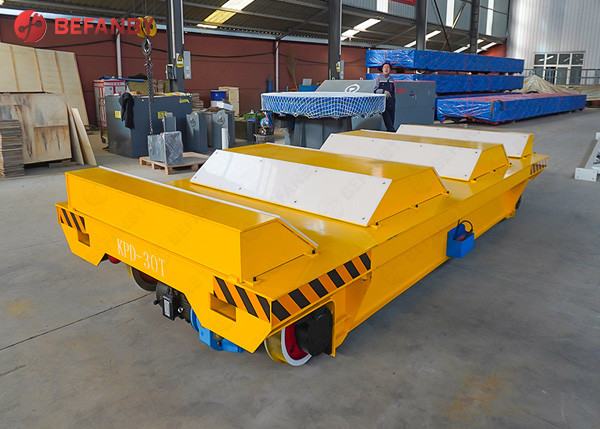

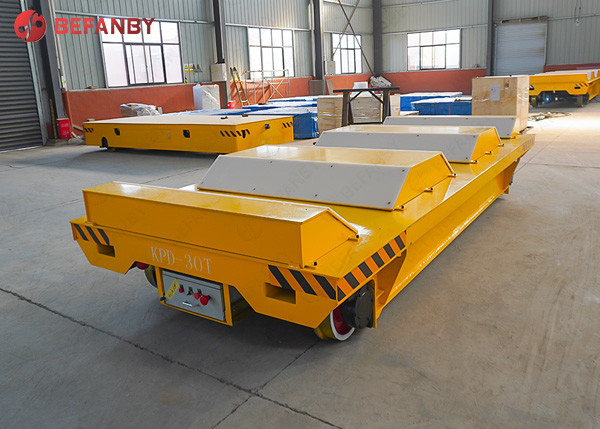

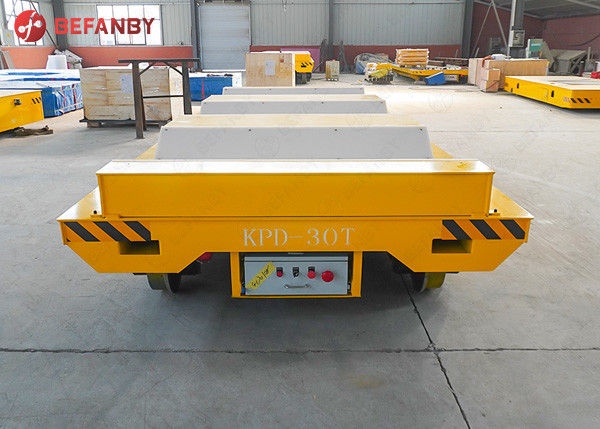

150T No Pollution Rail Transfer Cart Conducting Rail Bogie Q235 Material

  • 150T No Pollution Rail Transfer Cart Conducting Rail Bogie Q235 Material
  • 150T No Pollution Rail Transfer Cart Conducting Rail Bogie Q235 Material
  • 150T No Pollution Rail Transfer Cart Conducting Rail Bogie Q235 Material
  • 150T No Pollution Rail Transfer Cart Conducting Rail Bogie Q235 Material
  • 150T No Pollution Rail Transfer Cart Conducting Rail Bogie Q235 Material
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPD
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 20-30 days as usual delivery,
Payment Terms L/C, T/T, Western Union
Supply Ability 600set/sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Q235 Color Customized
Application Industrial Field Running Speed 0-20m/min
Running Distance According To Customers' Demand Power Supply Low Voltage Railways
Warranty 12 Months Load Capacity 1-300T
Port Qingdao/Tianjin/Shanghai Size Customized
Highlight

motorized rail cart

,

industrial material carts
Leave a Message
Product Description

150T No Pollution Professional Manufacturing Conducting Rail Bogie



The low-voltage rail electric transfer cart (KPD series) is an electric handling equipment powered by low-voltage rails. It is suitable for factory workshops, metallurgical plants, port terminals and other occasions. This equipment is suitable for long-distance, heavy-load handling needs, and is safe, stable and low-maintenance.



Working Principle


150T No Pollution Rail Transfer Cart Conducting Rail Bogie Q235 Material 0



The power supply process is as follows:

  1. Transformer step-down: 380V power supply is stepped down to 36V, 42V or 48V and transmitted to the track.
  2. Track power supply: Low-voltage electricity is transmitted to the electric transfer cart via the track.
  3. Power receiving device: The collector on the transfer cart receives the track power and transmits it to the on-board transformer.
  4. Step-up transformer: Boost 36V electricity to 380V to power the motor and control system.
  5. Motor-driven operation: The motor drives the wheels to run along the track, and the speed is adjusted, started and braked through the control system.



Character& Application Showing


150T No Pollution Rail Transfer Cart Conducting Rail Bogie Q235 Material 1



  • Anti-high temperature
  • Safe devices are installed
  • Customization canbe supported
  • Apply to various occasions
  • safety, flexibility, stable start, big starting torque, small capacity to the gear gearing
  • Low voltage, long lifetime
  • The running distance is not limited.
  • when the running distance is more than 70m, it is better to increase the transformers to make up for the voltage which as been lowed.
Technique Parameter

Model KPDZ-2t KPDZ-5t KPDZ-10t KPDZ-16t KPDZ-20t KPDZ-25t KPDZ-30t KPDZ-40t KPDZ-50t KPDZ-63t
Rated load 2 5 10 16 20 25 30 40 50 63
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Height(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter 270 300 300 350 350 400 400 500 500 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Ground Clearance 50 50 50 50 50 50 50 50 50 75
Running Speed 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer Power 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quatity 1 1 1 1 1 1 1 1 1 1
Running Distance 80 80 80 80 80 80 80 60 50 50
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50

Our Company

150T No Pollution Rail Transfer Cart Conducting Rail Bogie Q235 Material 2150T No Pollution Rail Transfer Cart Conducting Rail Bogie Q235 Material 1



Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

Why Choose Us


150T No Pollution Rail Transfer Cart Conducting Rail Bogie Q235 Material 4150T No Pollution Rail Transfer Cart Conducting Rail Bogie Q235 Material 5


Processing


150T No Pollution Rail Transfer Cart Conducting Rail Bogie Q235 Material 6



Delivery & Packing


150T No Pollution Rail Transfer Cart Conducting Rail Bogie Q235 Material 7


Our Customer


150T No Pollution Rail Transfer Cart Conducting Rail Bogie Q235 Material 8


Product Supply

Product Name Model No. Power Supply Mode Load Capacity Other Items Usage
Rail Transfer Cart KPD Conductor Rail Load range 1-300ton, can be customized per client demand Running distance Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car KPX Battery Using frequency
Motorized Transfer Trolley KPJ Cable Drum Running distance
Busbar Powered Handling Cart KPC Busbar Working shop
Towed Rail Trailer KP Tractor 1-100t Working shop
Steerable Towed Car BWT Tractor Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. Working environment
Trackless Handling Machine BWP Battery Working path

Our After Service
  •
  • 1> The load bearing safety factor of the trolley is no less than 120%.
  • 2>Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
  • 3> 16 hours engineering service and 24 hours internet service for our customers
  • 4> During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • 5> Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
