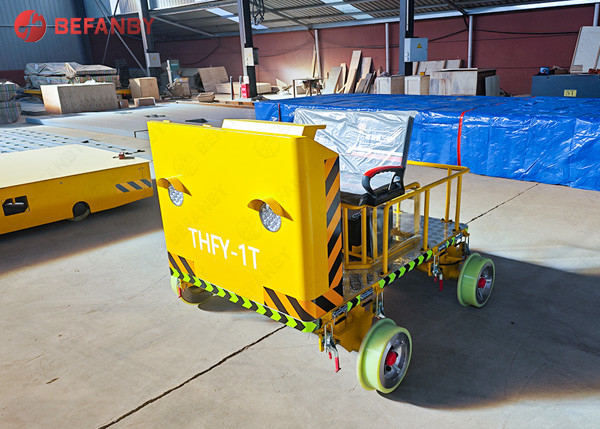

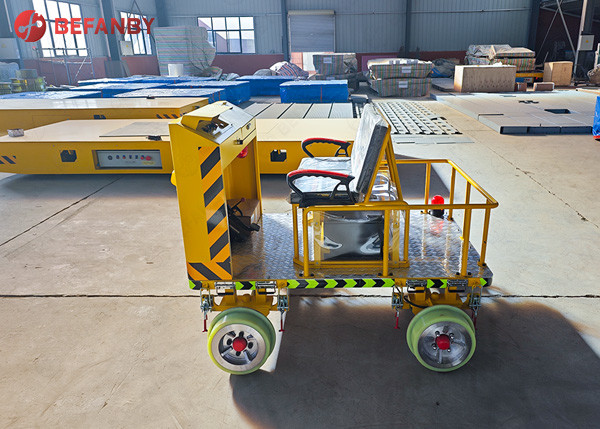

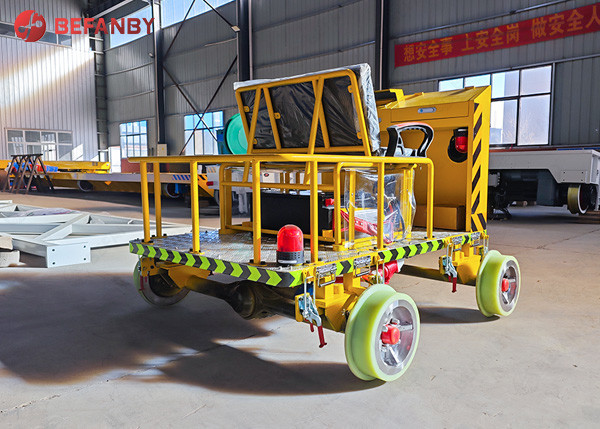

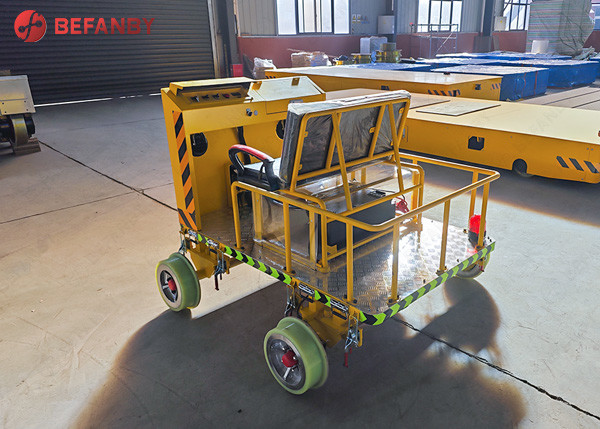

Flexible Running Material Transfer Trolley With Rail

  • Flexible Running Material Transfer Trolley With Rail
  • Flexible Running Material Transfer Trolley With Rail
  • Flexible Running Material Transfer Trolley With Rail
  • Flexible Running Material Transfer Trolley With Rail
  • Flexible Running Material Transfer Trolley With Rail
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The battery driven platform will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 20-30 days as usual delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1500 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frame Specially Design Box Girder Structure Color Customized
Application Industrial Field, Battery Powered Transfer Running Speed 0-20m/min
Warranty 24 Months Port Qingdao/Tianjin/Shanghai
Load Capacity 1-1500 Ton Payload Operation Type Hand Pendant + Remote Control
Power Supply Battery Powered Advantage More Than 20 Years' Experience For Transporting Sections Of Vessel Between Buildings Of Shipyard
Leave a Message
Product Description
Rail Guided Battery Drive Platform 60 Ton



Rail transfer trolleys are a type of material transport equipment that can run on fixed tracks. They are widely used in industrial production lines, warehousing and logistics, ports, and other scenarios to efficiently and accurately transport heavy goods. Their core features are stable operation, strong carrying capacity, accurate positioning, and automated control, making them suitable for large-size, high-load transport environments.



Technique Parameter


Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8



All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.

battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

Flexible Running Material Transfer Trolley With RailFlexible Running Material Transfer Trolley With Rail








Flexible Running Material Transfer Trolley With Rail



battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
Our Company



Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. is a professional and international handling equipment company integrating R&D, design, production and sales. It has a modern management team, technical team and production technician team.

Founded in September 2003, the company is located in Xinxiang city, Henan province, covering an area of 33,300 square meters. It has a modern large-scale factory building, world-advanced production equipment and office equipment. The company has more than 150 employees, including 8 engineers and more than 20 technicians. The company has a first-class research and design team, which can undertake the design and production of various non-standard handling equipment.
BEFANBY can not only provide transfer cart quotations, but also provide you with satisfactory handling solutions.
