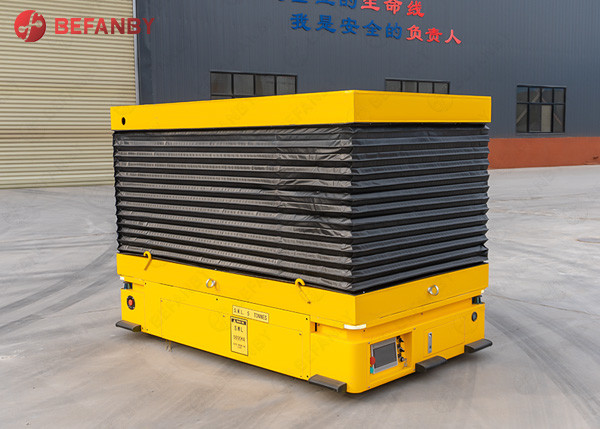

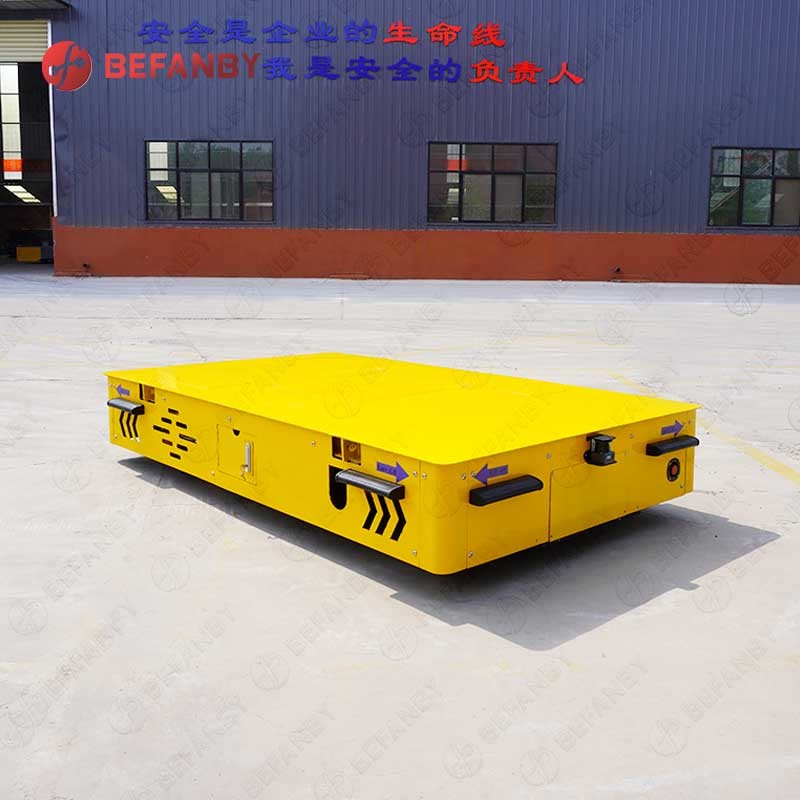

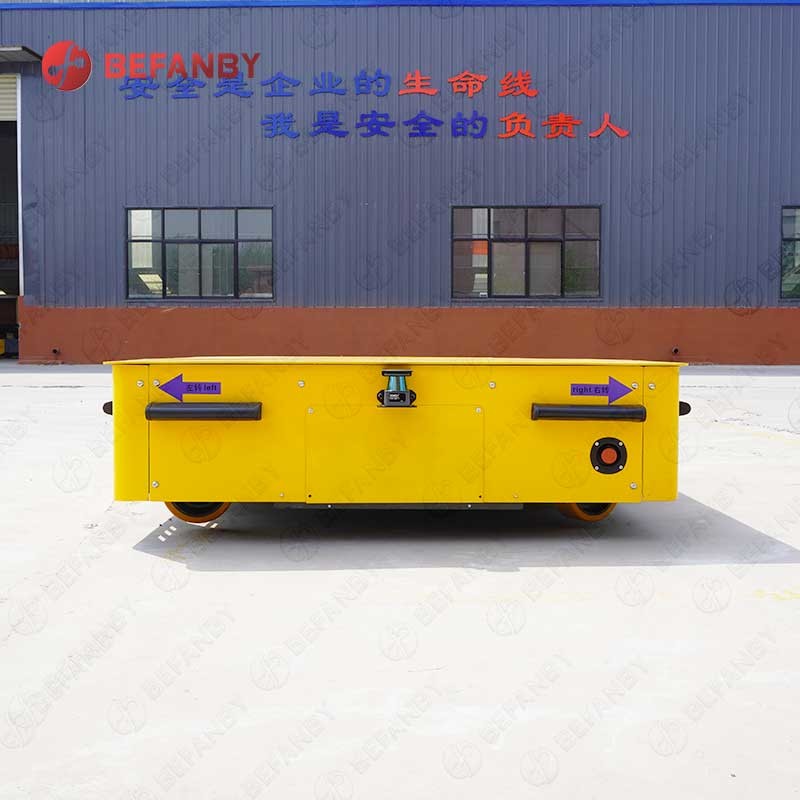

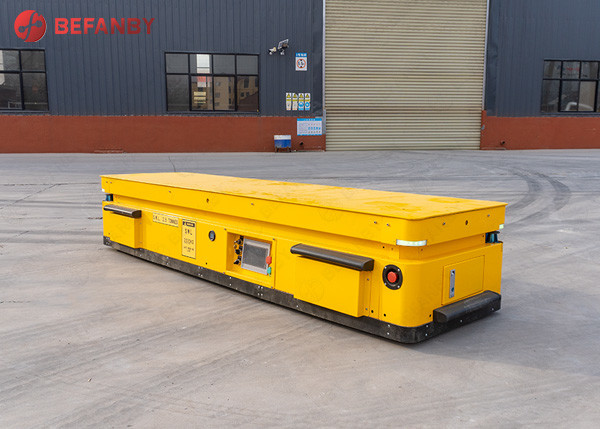

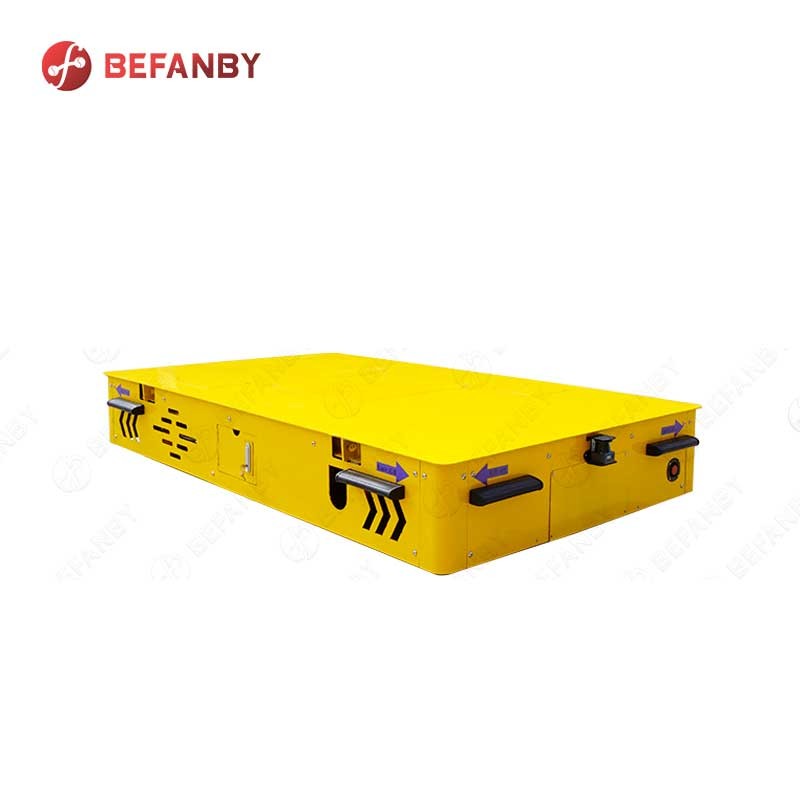

10 Ton Capacity Material Handling AGV Robot
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | Automatic RGV |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The Automatic Guided Cart AGV will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 29 Ton PLC Control Intelligent Rail Guided Vehicle Rgv | Power | Lithium Battery Powered |
|---|---|---|---|
| Warranty | 24 Months | Load Capacity | 1-40 Ton |
| Application | Workshop, Production Line,factory | Running Ways | Trackless,no Rail |
| Power Supply | Lithium Battery Power, Optional Power Supply | Characteristic | Automatic |
| Highlight | 10 Ton Capacity AGV Robot,Material Handling AGV Robot,10 Ton AGV Automatic Guided Vehicle |
||
Product Description
10 Ton Capacity Material Handling AGV Robot
Product Description Of Transfer Cart AGV
AGV material transfer cart is an efficient and intelligent transpor equipment, which is widely used in factories, warehouses, production lines and other places. It can not only improve work efficiency and reduce transportation costs. It also greatly reduces the investment cost of the enterprise, which is equivalent to the labor of 2 to 3 employees.
Secondly, advanced navigation technology can automatically plan the path and avoid obstacles. The ground can be laid with magnetic strips, laser navigation, etc. to drive autonomously along the path. This not only improves production efficiency, but also reduces the risk of errors and accidents caused by human factors. At the same time, the AGV transporter has an automatic charging function and comes with a charging pile. It has a long endurance.
In general, the emergence of AGV material transfer carts has brought new opportunities for the development of the industry and provided enterprises with a more efficient and intelligent production method.
Application Of Self Propelled Transfer Cart AGV
Parts Details
Advantages
Product Parameter
| Model | AGV-2T | AGV-5T | AGV-10T | AGV-20T | AGV-30T | AGV-40T | AGV-50T | |
| Rated load(t) | 2 | 5 | 10 | 20 | 30 | 40 | 50 | |
| Table Size | Length(mm) | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 | 5500 |
| Widthmm) | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | |
| Heigth(mm) | 450 | 550 | 600 | 800 | 1000 | 1200 | 1300 | |
| Wheel Base(mm) | 1080 | 1650 | 1650 | 1650 | 1650 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ200 | Φ280 | Φ350 | Φ410 | Φ500 | Φ500 | Φ550 | |
| Battery Voltage(V) | 48 | 48 | 48 | 72 | 72 | 72 | 72 | |
| Weel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 142.8 | 174 | |
| Reference Wight(t) | 2.3 | 3.6 | 4.2 | 5.9 | 6.8 | 7.6 | 8 | |
Running Route
Product Feature
