Intelligent Material Transfer Carts With Trackless
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | Automatic AGV |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The Automatic Guided Cart AGV will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Intelligent Material Transfer Carts With Trackless | Power | Battery Powered |
|---|---|---|---|
| Warranty | 24 Months | Load Capacity | 1-40 Ton |
| Application | Workshop, Production Line,factory | Running Ways | Trackless,no Rail |
| Power Supply | Lithium Battery Power, Optional Power Supply | Characteristic | Automatic |
| Highlight | Intelligent Material Transfer Carts,Trackless Material Transfer Carts |
||
Product Description

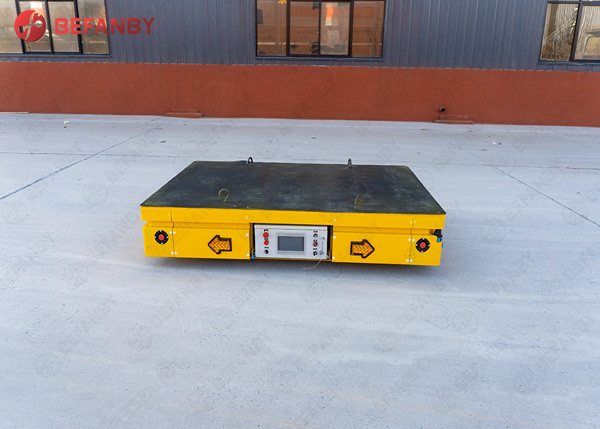

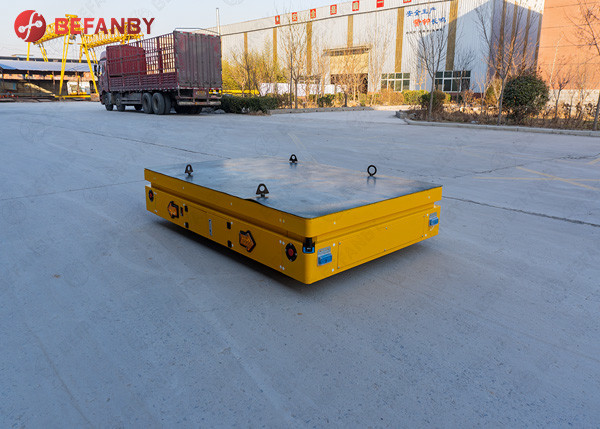

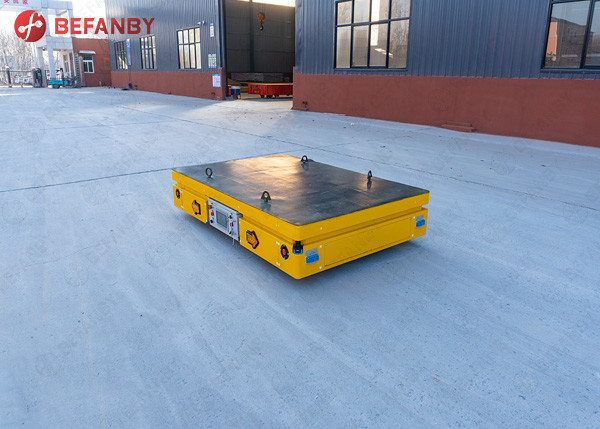

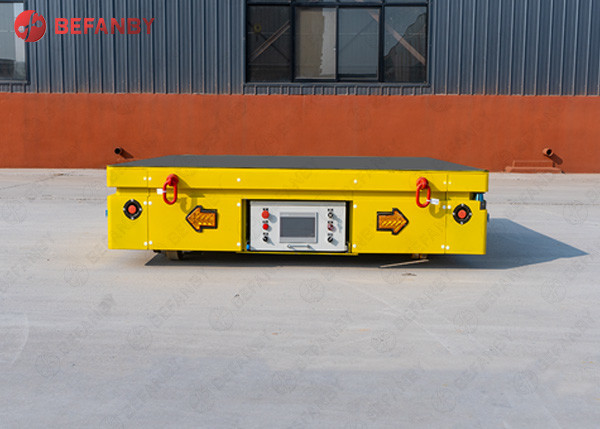

Intelligent Material Transfer Carts With Trackless
Product Description Of Transfer Cart AGV
Technological innovation and navigation flexibility
One of the biggest features of the AGV intelligent rail transporter is its highly intelligent navigation system. According to different ground road conditions and specific operation requirements, it can flexibly choose different navigation methods, including laser navigation, visual navigation, magnetic navigation and other technologies. These navigation technologies can not only accurately locate the position of the vehicle, but also adjust the path in real time to avoid obstacles, thereby ensuring safety and efficiency during transportation.
Efficient remote control operation system
In addition to automated navigation, the AGV intelligent rail transporter is also equipped with a convenient remote control operation system. Operators can monitor and control the operating status of the vehicle in real time through advanced remote control equipment.
Unlimited distance operation capability
Compared with traditional logistics handling tools, the operating distance of the AGV intelligent rail transporter is not limited. Its advanced battery and energy-saving technology can not only greatly extend the use time of a single charge, but also achieve fast charging and continuous operation through an intelligent charging system. This makes it very useful in scenarios such as large-scale warehousing, manufacturing and logistics centers, greatly improving the efficiency and cost control capabilities of logistics transportation.
Customized size and appearance design
As a highly flexible logistics solution, AGV intelligent rail transporter can not only customize the size according to the specific needs of customers, but also carry out personalized appearance design.
Full after-sales support from a professional team
Purchasing an AGV intelligent rail transporter is not just buying a device, but also a long-term cooperation with a professional team. We have an experienced after-sales service team who will fully support customers' equipment installation, commissioning and maintenance. Whether it is problem solving in daily operations or system upgrade optimization, we can respond in time and provide professional advice to ensure that customers are always in the best operating state.
Application Of Transfer Cart AGV
Parts Details
Advantages
Product Parameter
| Model | AGV-2T | AGV-5T | AGV-10T | AGV-20T | AGV-30T | AGV-40T | AGV-50T | |
| Rated load(t) | 2 | 5 | 10 | 20 | 30 | 40 | 50 | |
| Table Size | Length(mm) | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 | 5500 |
| Widthmm) | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | |
| Heigth(mm) | 450 | 550 | 600 | 800 | 1000 | 1200 | 1300 | |
| Wheel Base(mm) | 1080 | 1650 | 1650 | 1650 | 1650 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ200 | Φ280 | Φ350 | Φ410 | Φ500 | Φ500 | Φ550 | |
| Battery Voltage(V) | 48 | 48 | 48 | 72 | 72 | 72 | 72 | |
| Weel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 142.8 | 174 | |
| Reference Wight(t) | 2.3 | 3.6 | 4.2 | 5.9 | 6.8 | 7.6 | 8 | |
Running Route
Product Feature
