Rail Wheels Battery Transfer Cart For Precast Concrete Workshop 120T

  • Rail Wheels Battery Transfer Cart For Precast Concrete Workshop 120T
  • Rail Wheels Battery Transfer Cart For Precast Concrete Workshop 120T
  • Rail Wheels Battery Transfer Cart For Precast Concrete Workshop 120T
  • Rail Wheels Battery Transfer Cart For Precast Concrete Workshop 120T
  • Rail Wheels Battery Transfer Cart For Precast Concrete Workshop 120T
  • Rail Wheels Battery Transfer Cart For Precast Concrete Workshop 120T
Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX-12t
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details The rail wheels transfer cart will be packed by the tarp, Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T
Supply Ability 60 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity(t) 1-1500 Tons, 120 Ton Color Customized
Operation Type Hand Pendant+ Remote Control After-sales Service Provided Field Maintenance And Repair Service
Warranty 2 Year Running Speed 0-20m/min
Highlight

Rail Wheels Battery Transfer Cart 120T

,

Precast Concrete Workshop Rail Transfer Trolley

,

Battery Coil Transfer Cart
Leave a Message
Product Description



Rail Wheels Transfer Cart For Precast Concrete Workshop Using 120t


If the precast concretes are transported by crane, there is a large danger. In order to guarantee the safe and working peformance, the rail wheel transfer cart was born.



The precast concrete is hoisted to the rail transfer cart by a crane. In order to avoid the precast concrete from sliding on the rail transfer cart, a support frame is fixed on the table and the precast concrete is transported to the corresponding station by the rail wheels transfer cart. Route, but with its own safety monitoring device, it will automatically stop when the transfer cart encounters a pedestrian or an obstacle, and the safety is reliable.



Advantages

  • Flexible and environmental;
  • It can run on S shape rail, arc-shape rail and stright rails.
  • Unlimitedrunning distance;
  • Easy to rail construction;
  • The hydraulic lifting device, V-frame, power roller can be installed on the platform;
  • Customized from 1 ton to 1500 tons;
  • Safe device is installed, including sound & light alarm, Sensor stop, E-stop, Buffer, etc.

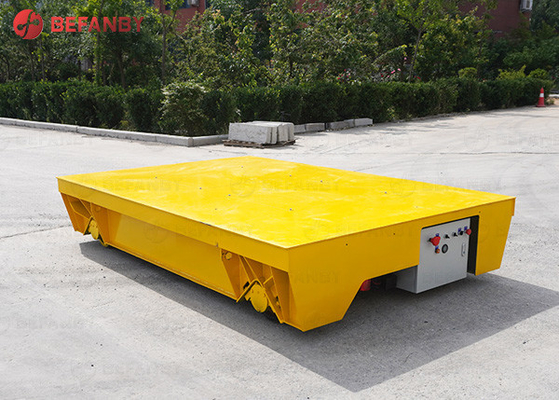

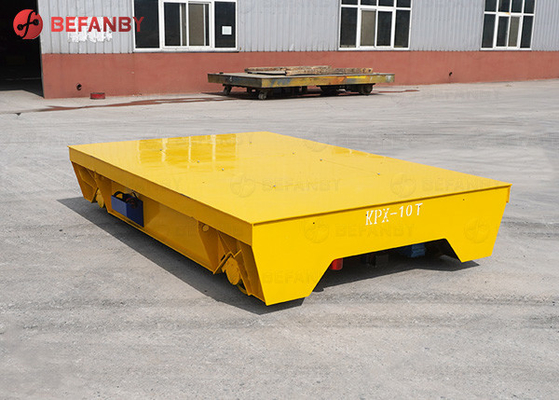

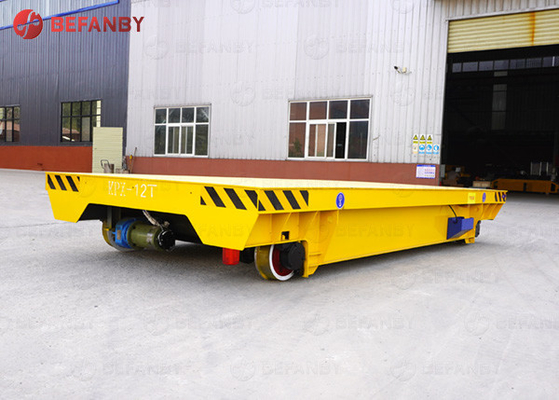

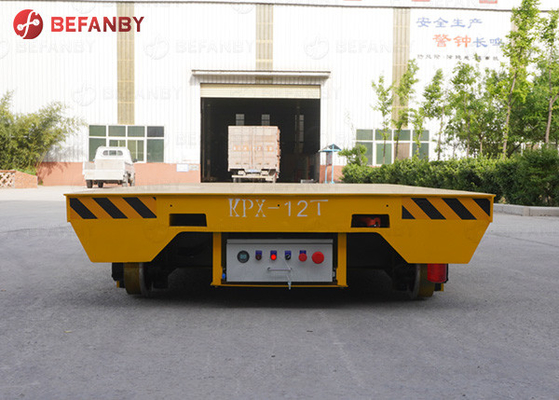

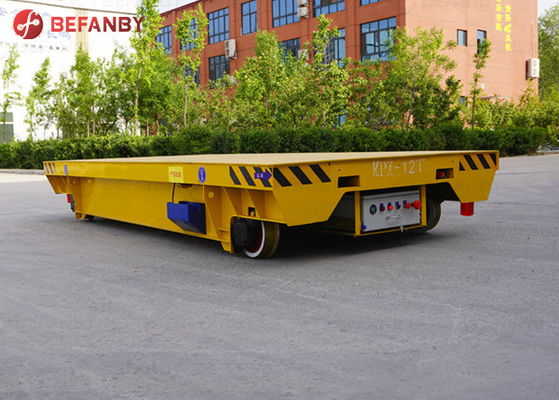

Rail Wheels Battery Transfer Cart For Precast Concrete Workshop 120T 0Rail Wheels Battery Transfer Cart For Precast Concrete Workshop 120T 1


Rail Wheels Battery Transfer Cart For Precast Concrete Workshop 120T 2

































The parameter
Model
 KPX-2T KPX-10T KPX-20T KPX-30T KPX-50T KPX-63T KPX-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100
