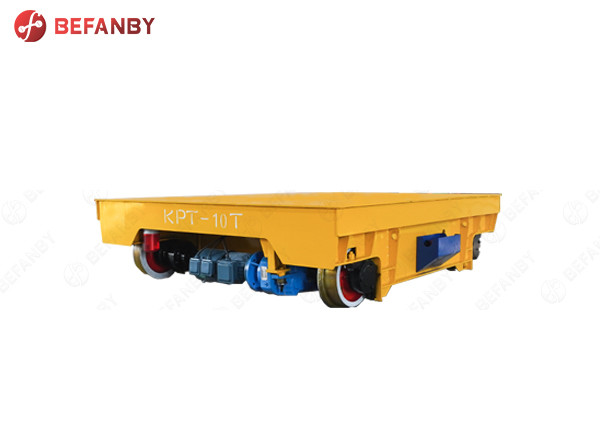

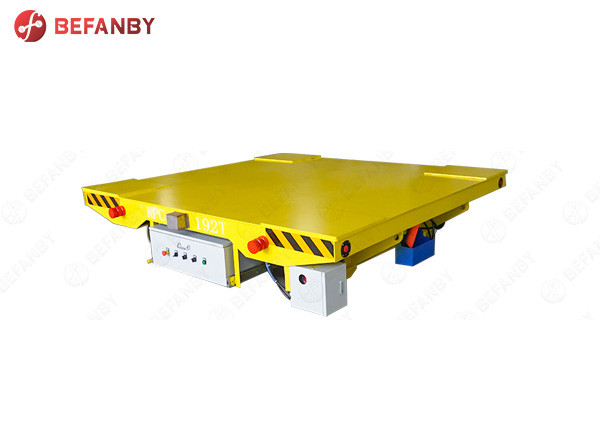

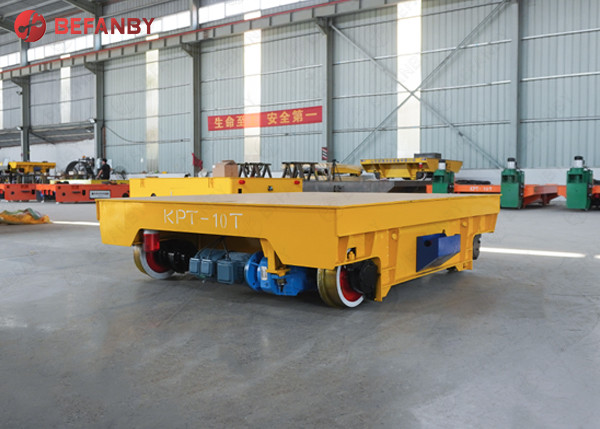

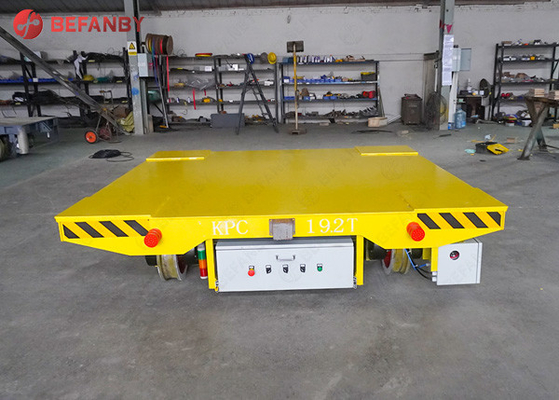

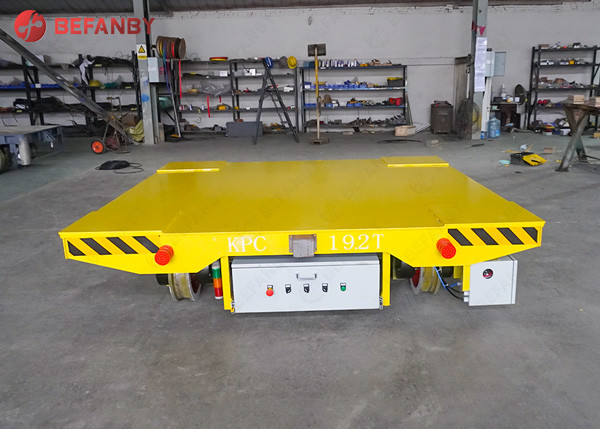

Workshop Mobile Cable Pulling Electric Transport Cart 20m/Min
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE, SGS, ISO9001 |
| Model Number | KPT |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Workshop Customized Cable Pulling Transfer Trolley On Rail | Power Supply | Mobile Cable Pulling |
|---|---|---|---|
| Running Distance | According To Customers' Demand | Running Speed | 0-20m/min |
| Color | Yellow; Red; Blue, Gray, Etc. | Load Capacity | 1-1500T, Customized Manufacture |
| Warranty | 24 Months | Operation Type | Hand Pendant + Remote Control |
| Highlight | SGS Cable Pulling Electric Transport Cart,1500T Load Electric Transfer Cart,Electric Transport Cart 20m/Min |
||
Product Description
Workshop Customized Cable Pulling Transfer Trolley On Rail
The cable powered transfer trolley on rails uses 380v ac power supply. in order to prevent the cable from being damaged when it is stressed, the hysteresis coupling type is generally used, which can automatedly release when it is tight. in general, this kind of electric flat car is widely used in brick factory, kiln factory, refractory factory, ceramic factory, and all kinds of large, medium and small mechanical processing plants. in order to make the electric flat car more stable and safe, the ground step-down transformer is generally used to control the voltage, so as to ensure the stability and safety of operation. in order not to hinder the transportation, the cable reel of the electric flat car is generally special, which is not only high in safety, but also good in heat resistance. the combination of these equipment has become the most advanced electric flat car, which can transport 1-500 tons of goods in various working environments. for the transfer trolley powered by kpd cable reel, the operation mode is generally through the main motor direct power supply and traction to realize the operation of the flat car. for the disadvantage of short running distance, the improved kpz electric flat car can completely solve this problem. through the on-board rectifier device, the single-phase on the track can be changed into three-phase, and the aging phenomenon can be eliminated, even in the case of under voltage, it can work well.
Safety Device:
1. buffer device
rubber buffer device is installed on the cart in case the cart collides with another vehicle. body damage is avoided.
2. warning lamp
led sound and light warning lamp is installed in case people approximate the running cart unconsciously.
3.emergency stop function: induction device is installed so that the cart can stop emergently when detecting obstacles such as persons, things and walls. in this way, accident is avoided.
4.safety of electrical parts: emergency stop button, overcurrent protection, short circuit protection.
Technique Parameter
| Model | KPT-2t | KPT-5t | KPT-10t | KPT-16t | KPT-20t | KPT-25t | KPT-30t | KPT-40t | KPT-50t | KPT-63t | KPT-80t | KPT-100t | KPT-150t | |
| Rated Load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | 800 | 850 | 1200 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 2.3 | 3.3 | 3.8 | 5 | 5.5 | 6 | 6.3 | 7.2 | 7.6 | 10.3 | 12.1 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
