V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX-30T |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | The transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40 days for urgent delivery |
| Payment Terms | 30% deposit by T/T in advance, 70%balance by T/T before dispatch |
| Supply Ability | 600 sets one year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Production Line Or Paper Industry | Rated Load | 30t |
|---|---|---|---|
| Max. Capacity | Up To 500ton | Car Size | 8000*3000*500mm |
| Electrical Equipment | Siemens, Schneider, Nord | Exported Countries | Mexico, Australia, Singapore |
| Material | Q235 Steel | Wheel Quantity | 4 Pcs |
| Package | The Whole Aluminum Rail Vehicle Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate | Delivery Time | 45-60 Days After Received Advamced Payment |
| Payment Terms | T/T, L/C | Port | Qingdao/Tianjin/Shanghai/Ningbo |
| Operation Type | Hand Pendant + Remote Control | ||
| Highlight | battery operated cart,rail transfer trolley |
||
Product Description
Paper making factory rail transport carriage with V-frame and hydraulic lifting device
Working principle of rail transport carriage with V-frame
The rail transport carriage is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop,forward,back,speed governing,etc, electrical control system command the order to DC motor to drive transfer cart working.
Features of paper making rail transport carriage
- Simple structure, low cost;
- Has no strict on rail construction;
- Suitable to working area with short running distance;
- Suitable to working area with high using frequency;
- Has no limit on running distance;
- Can be applied in high-temperature environment;
- Box girder structure;
- Reasonable design, reliable operation;
- Can be add hydraulic lifting device;
- Can be add dumping device;
- High efficiency, low energy consumption;
Detailed description of paper making factory rail transport carriage
This kind of rail transport carriage is running on steel tracks or steel squre bars. For special handling requirement, additional rails can be installed on the platform of the rail traverser, then another rail cart can run on the platform. It can solve the transferring problem with crossing rail or 90 degree rails.
Production flow of rail transport carriage

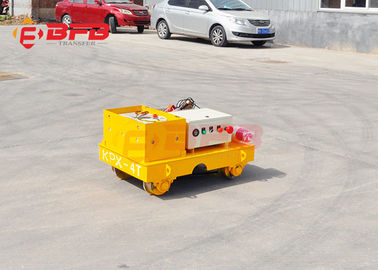

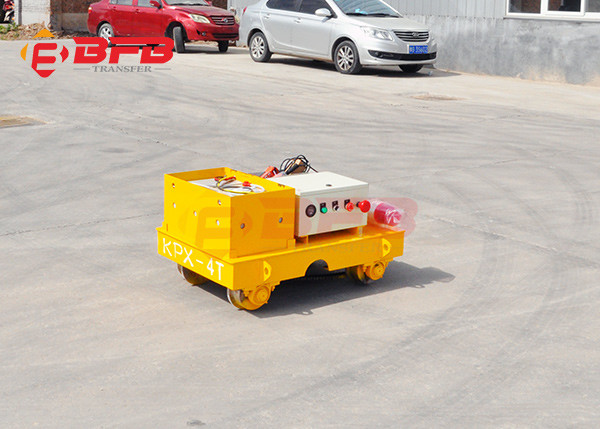

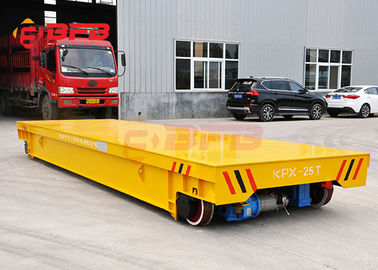

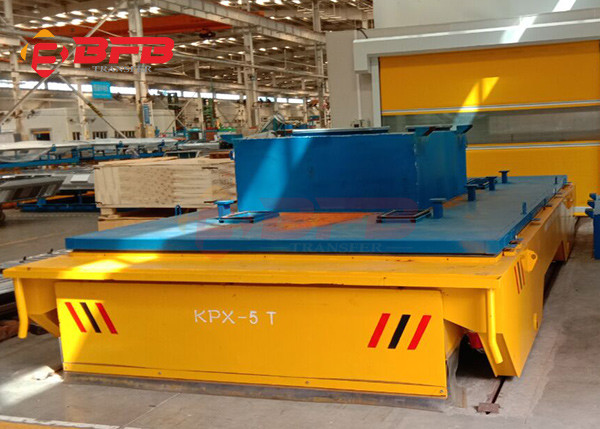

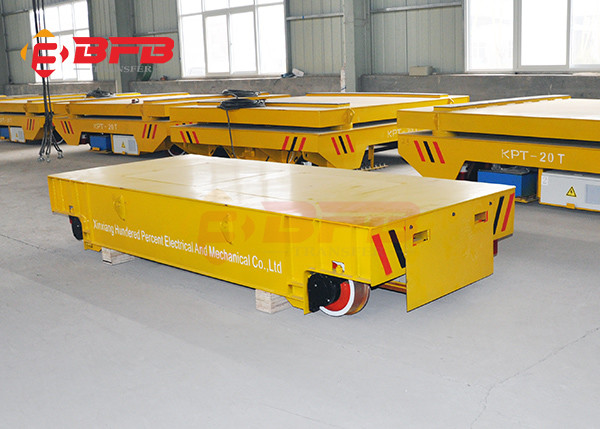

Photos of rail transport carriage
Main parts of rail transport carriage
The main parts of rail transport carriage includes frame, cast wheel, motor and reducer, electric control box, and other safety device.
Steel frame Casting wheel Light & sound alarm
Driving mechanism Reducer Bumper
Technical parameters of rail transport carriage
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 1 | 1.2 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 180 | 180 | 160 | 180 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Application of paper making factory rail transport carriage
This kind of rail transport carriage is applied in paper industry to transfer paper coils from production to warehouse. It is running on steel tracks or steel squre bars.It is also applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer cylinder materials from producing line to store.
In order to protect security, a V-frame is added on the platform.
Delivery of rail transport carriage
Generally the rail transport carriage is delivery through container, but if the platform is too large, it can be delivery through frame rack
Customer visit in our factory
Customer feedback
Quality control of rail transfer table

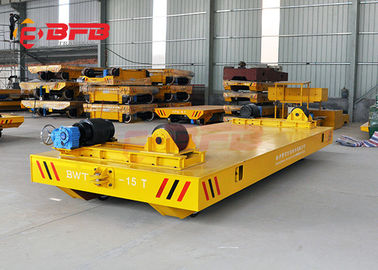

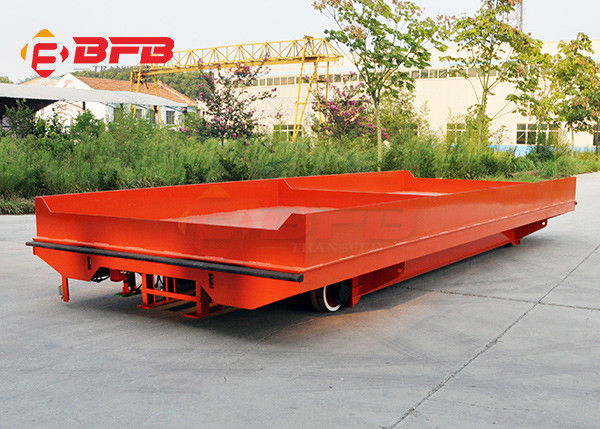

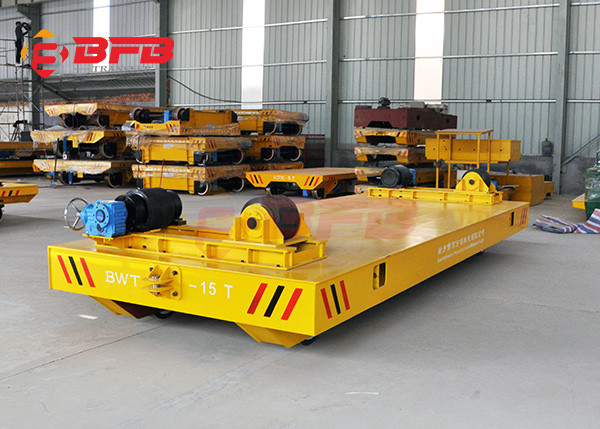

Other rail handling car in BEFANBY company
Our company
Our certificate
FAQ
- Q: What is the capacity of rail transport carriage?
- A: The capacity can be customized, the max. Load capacity can reach to 500 tons.
2. Q: What is the using candition?
A: The environment temperature should be in level. such as production line
3. Q: What is the working speed of the ladle car?
A: The standard running speed is 0-20m/min.
