Electric 5t Rail Platform For Sale With Electric Remote Control
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX-5t |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 50-60 days as usual delivery,40-50days for urgent delivery |
| Payment Terms | 30% deposit by T/T in advance, 70%balance by T/T before dispatch |
| Supply Ability | 600 sets one year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 5t Rail Electric Platform For Sale With Electric Remote Control | Capacity | Up To 300tons |
|---|---|---|---|
| Dimension(mm) | 5000*2200*650 | Speed(m/min) | 0-20m/min |
| Rail Gauge(mm) | 1435 | Rail Type | P24 |
| Wheel Diameter(mm) | 300 | Wheel Quantity | 4 |
| Application | Heavy Material Transfering | Certificate | CE, SGS, ISO9001, SASO |
| Warranty | 12 Months | Load Capacity | 1-300T |
| Highlight | battery powered cart,rail transfer trolley |
||
Product Description
Electric 5t rail platform for sale with electric remote control
Product brief
The whole rail platform is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it travels flexibly.
The functions of the rail platforms including go forward and backward,turn left and right, adjust speed button, indicator light, electric indicator light and other control buttons.
KPX series rail platform is battery powered. The batteries are installed in the carts. The batteries supply electricity to the DC motor through the electrical control system.
Advantages of rail platform
1.Safety, flexibility, stable start
2.No restriction of the running time
3.DC motor: big starting torque, small impact to the gear reducer, low voltage, long lifetime
4.Running distance is not limited.
5.This series' transfer cart can also be used in high temperature environment.

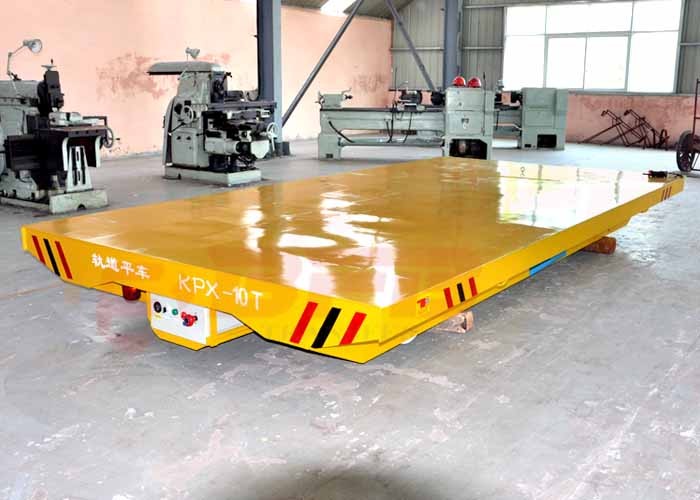

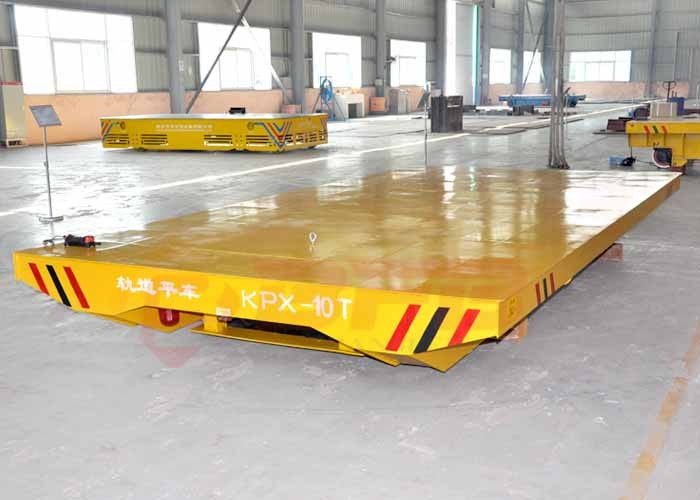

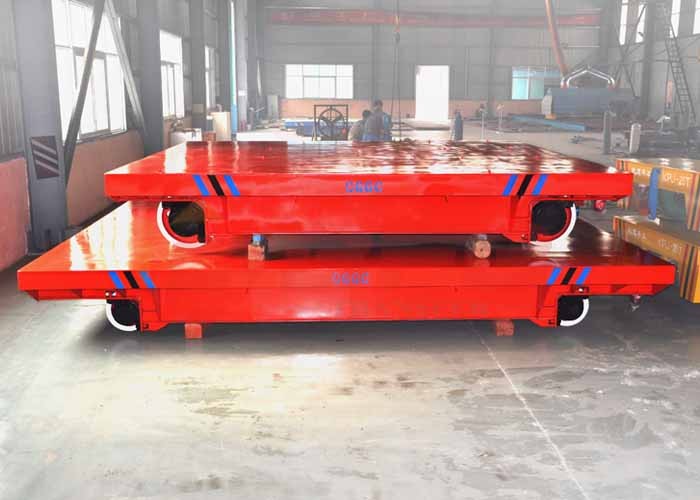

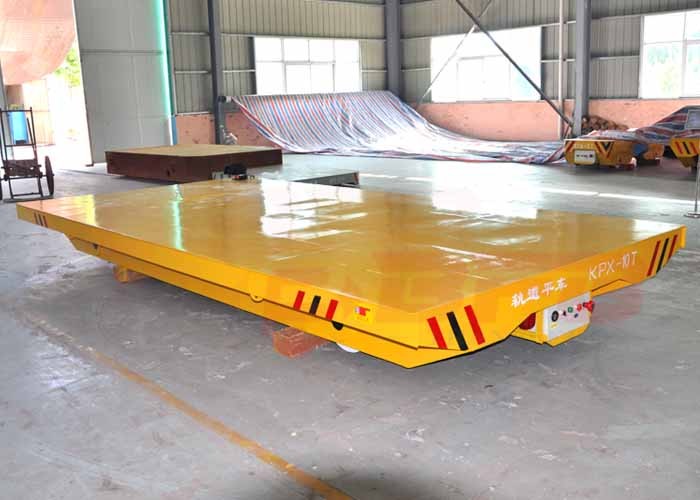

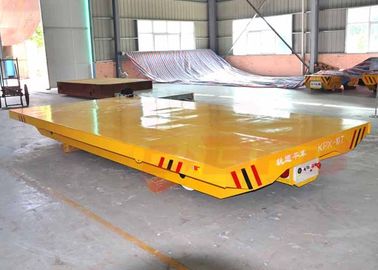

Photo show of rail platform
The motorised rail platform is applied in metal industry factory to transfer large dimension steel plate, steel structure. The transport cart is remote control, it is convenient to operate.
It is suitable to application with not so long running distance, high using frequency. It has no time limit.
The main parts of steel plant rail platform is cart frame, motor, reducer, cable drum, electric appliance, etc.

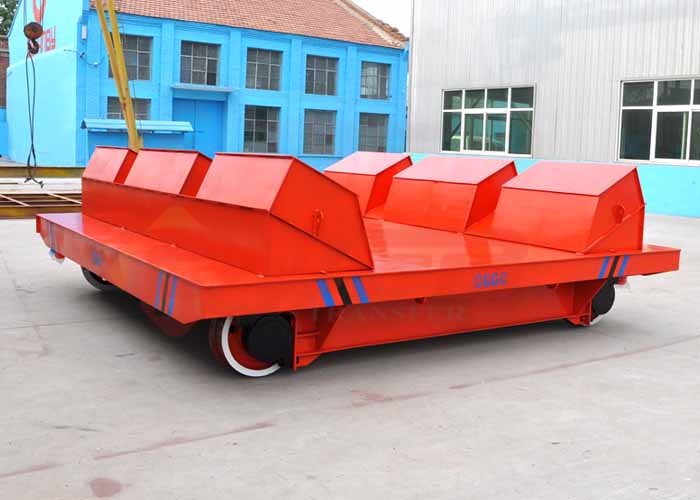

These kind of rail platform is applied to transfer heavy steel or aluminum coils. In order to inviod the steel coils falling down from the transfer cart, we designed a V-frame. It can protect the coils also the security. We can recommend you the direction of the V-frame according to the coils.
The parameter of rail platform
|
Model
|
KPJ-2T | KPJ-10T | KPJ-20T | KPJ-30T | KPJ-50T | KPJ-63T | KPJ-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
Application of rail platform
The battery power rail platform is mainly applied in assembly line(ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy(polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor).
BEFANBY Company
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a professional and experienced manufacturer,exporter of material transfer car in China, meanwhile we also design material handling solution according to client's demand
Cutomer from worldwide
Parts of BEFANBY Certificates
Delivery of rail platform
Generally the rail platform is delivery through container. If the dimension of the transport is too large, it
can be break up or delivery through flat rack.
BEFANBY advantages
- Our commitment: The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
- 16 hours engineering service and 24 hours internet service for our customers.
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you .
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
