18T Coil Transportation Rail Transfer Cart With Winch Towing

  • 18T Coil Transportation Rail Transfer Cart With Winch Towing
  • 18T Coil Transportation Rail Transfer Cart With Winch Towing
  • 18T Coil Transportation Rail Transfer Cart With Winch Towing
  • 18T Coil Transportation Rail Transfer Cart With Winch Towing
  • 18T Coil Transportation Rail Transfer Cart With Winch Towing
  • 18T Coil Transportation Rail Transfer Cart With Winch Towing
Place of Origin Henan, China
Brand Name BEFANBY
Certification CE, SGS, ISO9001
Model Number BWT
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The transfer trailer will be packed by the tarp, the parts will be packed y the high quality wooden case.
Delivery Time 15-20 working days for usual delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1500 sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
After-sales Service Provided Engineers Available To Service Machinery Overseas Warranty 1 Year
Application Material Transfer, Workshop ,production Line Capacity 1-500 Ton For Steel Coil Transportation Trailer
Power Supply No Powered/munual Product Name Forklift Towing Non Power Flatbed Steel Coil Trailers On Cement Floor
Material Q235 Operation Type Winch, Forklift, Manual Towing
Color Yellow, Gray, Red Or As Your Needs
Highlight

18T Coil Transportation Rail Transfer Cart

,

Winch Towing Rail Transfer Cart

,

Forklift Towing Rail Transfer Cart
Leave a Message
Product Description

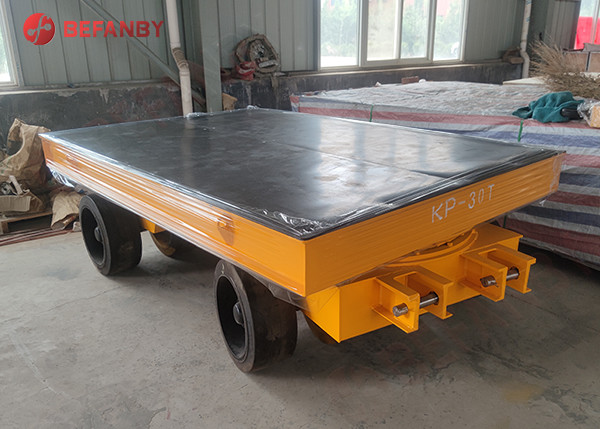

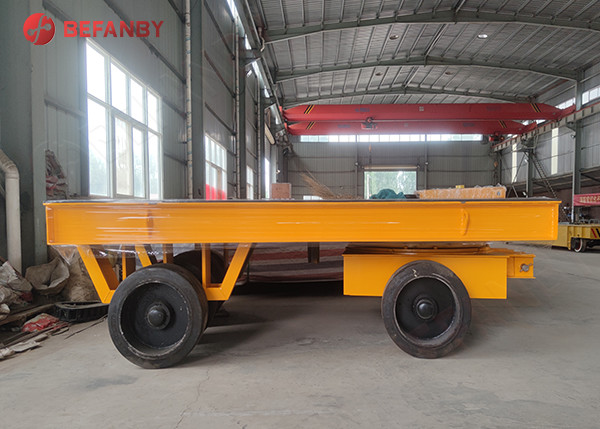

Forklift Towing Non Power Flatbed Steel Coil Trailers On Cement Floor

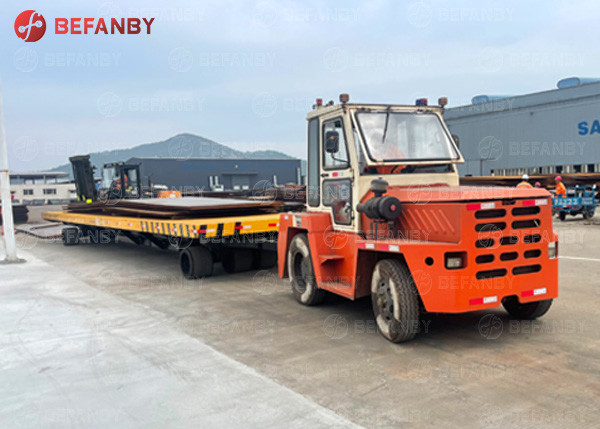

BEFANBY manufactured the flatbed steel coil trailers can be pushed by manpower or towed by other vehicles,such as winch, forklift or tractor,



It is powered by forklift, so a drawbar is needed. There are two kinds of drawbar type, one is fixed length drawbar, the

other is adjustable drawbar. The length can be customized as per customer's demand. The turning radius is designed as per car dimension.



Functions & Advantages Of Towing Trolley

A: The Towing Trolley Is Towed By Other Machine Such As Tractor,Locomotive And Forklift;

B: With Lifting Holes, Towing Trolley Is Convenient To Shipment;

C: The Towing Trolley Has Better Structure And Mechanism;

D: The Towing Trolley Can Is Easy To Be Removed;

E: Running Distance Of Towing Trolley Is Unlimited;

F: Safe And Convenient Operation Is Available For Towing Trolley;

G: The Towing Trolley Will Be Blasting Cleaned And Anti rust Treated;

H: The Towing Trolley Has Been Defined As Cost Savings, Labor Savings And Highly Secure During In Use;

I: The Frame Of Towing Trolley Is Made Of Steel Beam, So The Load Ability Of The Trolley Is Strong And It Is Not Easy To Bend Over And Avoid The Deformation, Which Extends The Service Time;

J: The Wheel Of The Towing Trolley Are Special Manufactured By Cast Steel And Rubber. The Rubber Will Reduce The Impact Force To The Ground From The Trolley, And Protect The Damage To The Wheel;

K: The Turning Of The Towing Trolley Is Controlled By The Tow Bar, And Then Connects To The Four Wheels, Which Has Shorted A Lot For The Turning Radius To Make The Trolley Available In Small Space.



18T Non Power Coil Transportation Trailers With Winch Towing

Advantages of no power transfer trailer

  • Box girder structure, not easy to deform
  • Low cost
  • Anti-explosion and anti- high temperature
  • Cab be towed or push by manual
  • Durable
  • Environmental

​Forklift Towing Non Power Flatbed Steel Coil transportation Trailers On Cement Floor



Main of no power transfer cart


The main parts of the forklift transfer cart includes cart frame, towed hook, cast wheel, control box, etc.



18T Non Power Coil Transportation Trailers With Winch Towing


The parameter of non power steel coil trailer

Model KP-2t KP-20t KP-50t KP-100t KP-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100





Processing of no power transfer cart china factory


18T Non Power Coil Transportation Trailers With Winch Towing


Packing& Delivery of no power transfer trailer

18T Non Power Coil Transportation Trailers With Winch Towing



Company Introduce



Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.



18T Non Power Coil Transportation Trailers With Winch Towing

You can copy the following options and click here to select your specific requirement for the transfer cart to send us. And then the proper solution and price will be sent to you.



1. The load capacity of the transfer cart is ( ) ton.



2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).



3. The transfer cart runs on the rails or common floor?



4. Whether exist turning?



5. Whether has other special requirement?
